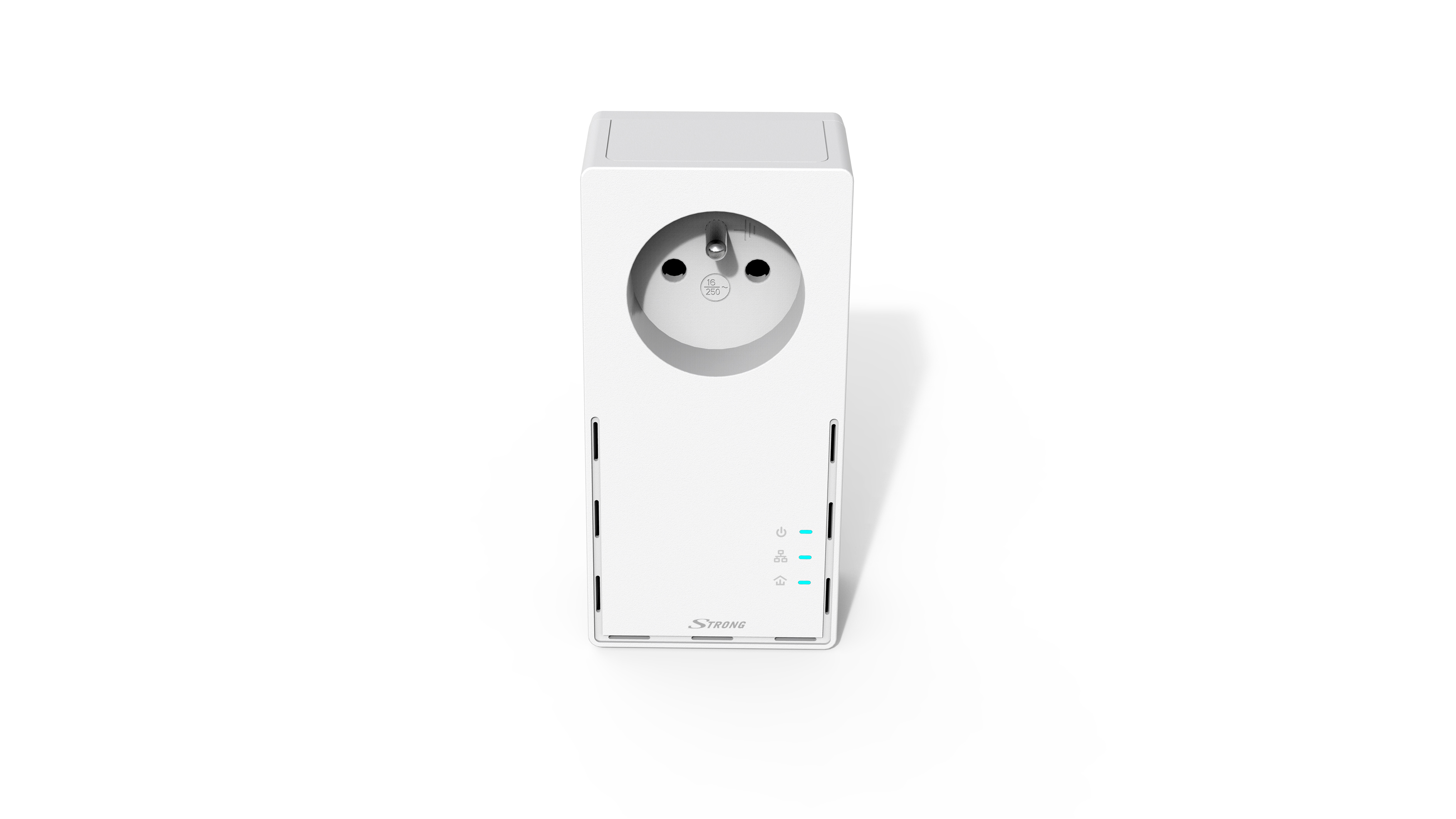

    AV1000 Gigabit Passthrough PLC
    1000 Mbps powerline speeds
    300 meters range over electrical circuitry for better performance through walls and floors
    Home Plug AV2 standard compliant
    Plug and Play, with no drilling, wiring, or configuration required
    Power consumption: Standby 0.464W, on-state 2.55W, full power 3.57W Perfect for connecting smart TVs, streaming players & game consoles Ideal for 4K HD streaming & lag-free gaming Works with HomePlug AV2 and HomePlug Green PHY Typical coverage up to 500m2 (5,832ft2) Sets up in minutes, no need to install software Secures the network connection with the touch of a button Energy-saving--Powers down when not connected
    SPECIFICATIONSPECIFICATION
    Physical Specifications

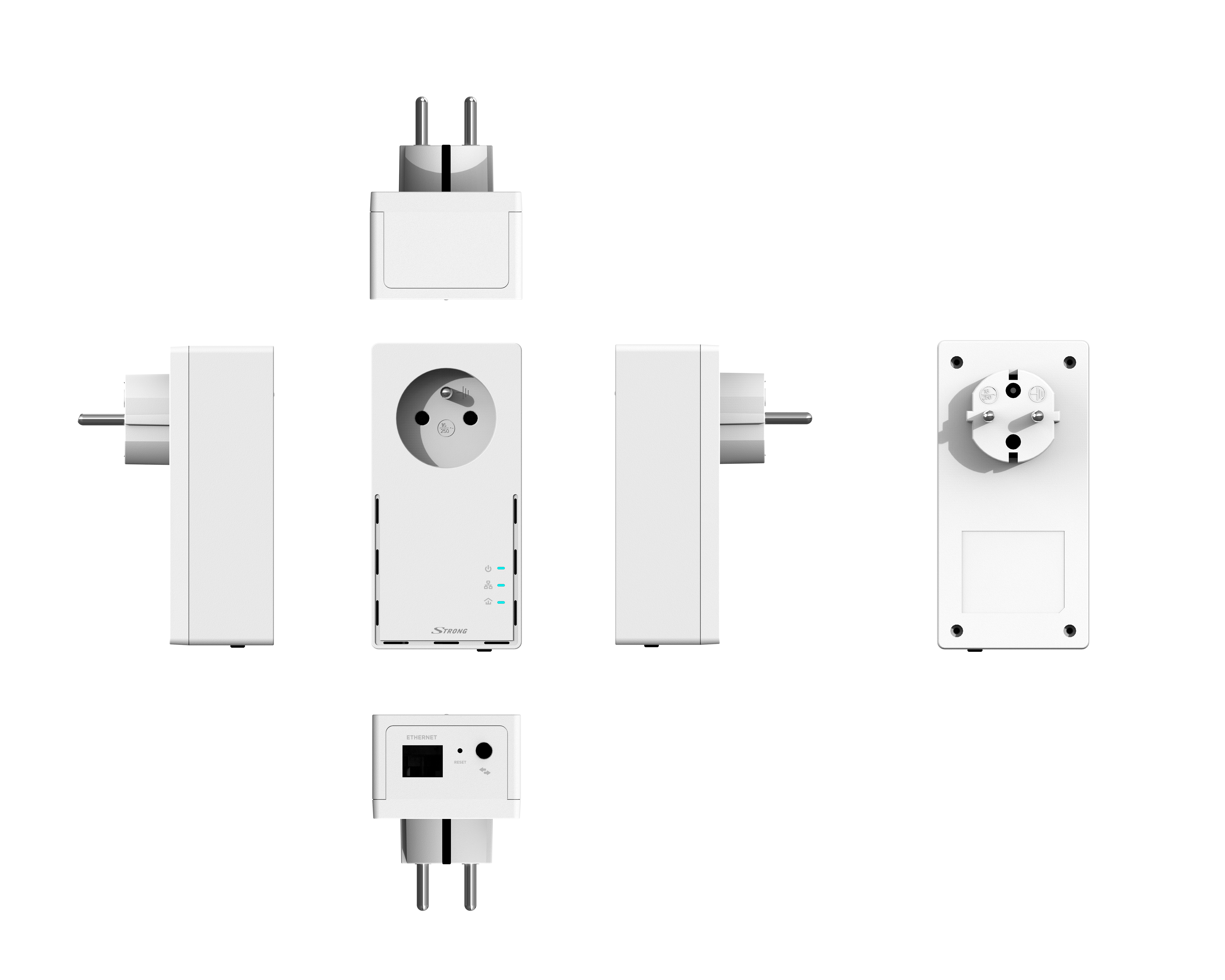

         Dimensions: 120.4 x 59.3 x 42 mm
    ? Weight: 180g

    Package Contents
    ? Two (2) Powerline 1000 + Extra Outlet Adapters (PP220)
    ? Two (2) Ethernet cables
    ? Quick start guide

    Standards
    ? 1000 Mbps Powerline interface
    ? 10/100/1000 Mbps† Gigabit Ethernet port
    ? Works with HomePlug AV and HomePlug Green PHY
    ? IEEE® 1901 compliant
    ? IEEE® 802.3 compliant

    System Requirements
    ? To connect via Ethernet: RJ-45 Ethernet port
    ? Existing electrical wiring and outlets
    ? Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux

    Environment
    ? Operating Temperature: 0°C~40°C (32°F ~104°F)
    ? Storage Temperature: -40°C~70°C (-40°F ~158°F)
    ? Operating Humidity: 10%~90% non-condensing
    ? Storage Humidity: 5%~90% non-condensing
